Specifications

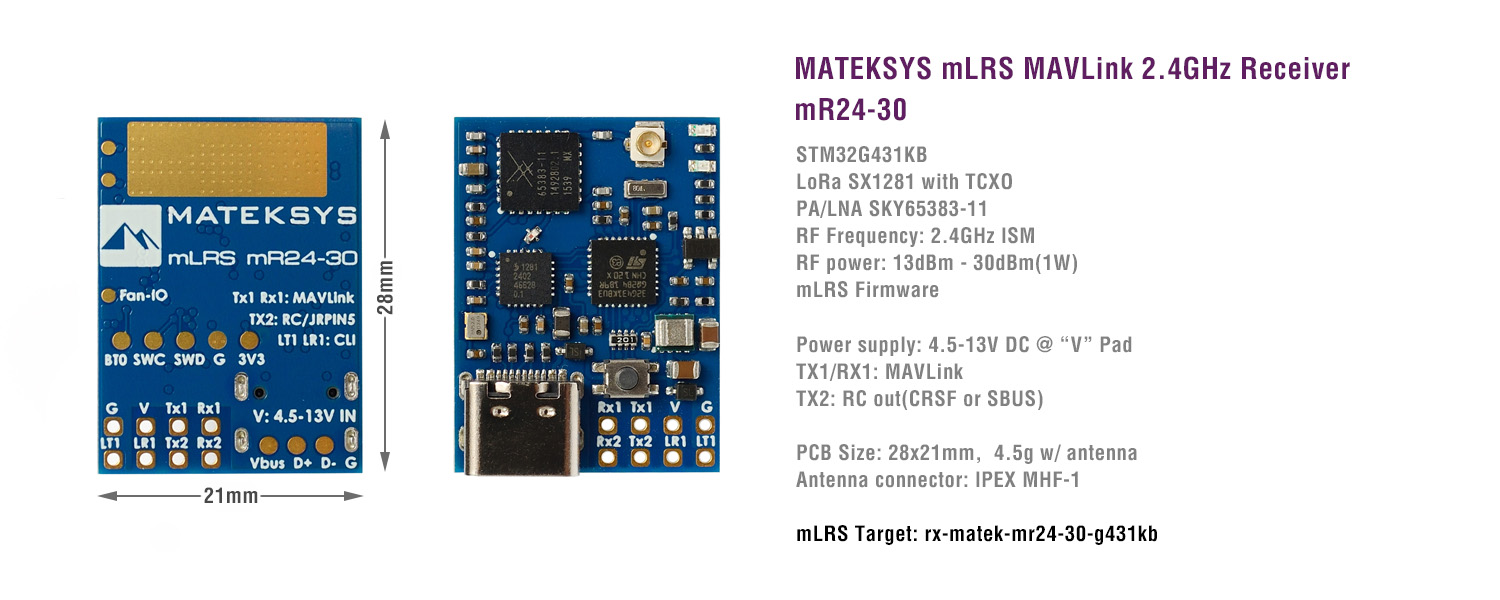

• STM32G431KB,  mLRS firmware
• LoRa SX1281 with TCXO
• PA/LNA SKY65383-11
• RF Frequency: 2.4GHz ISM
• RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
• Antenna connector: IPEX MHF-1
• TX1/RX1: Bi-directional Serial MAVLink
• TX2: RC out(CRSF or SBUS)
• one buttom for DFU mode and Bind

• Power supply: 4.5-13V DC @ “V” Pad
• Power dissipation:  Average 360mA/Peak 900mA@5V IN(50Hz, 30dbm)

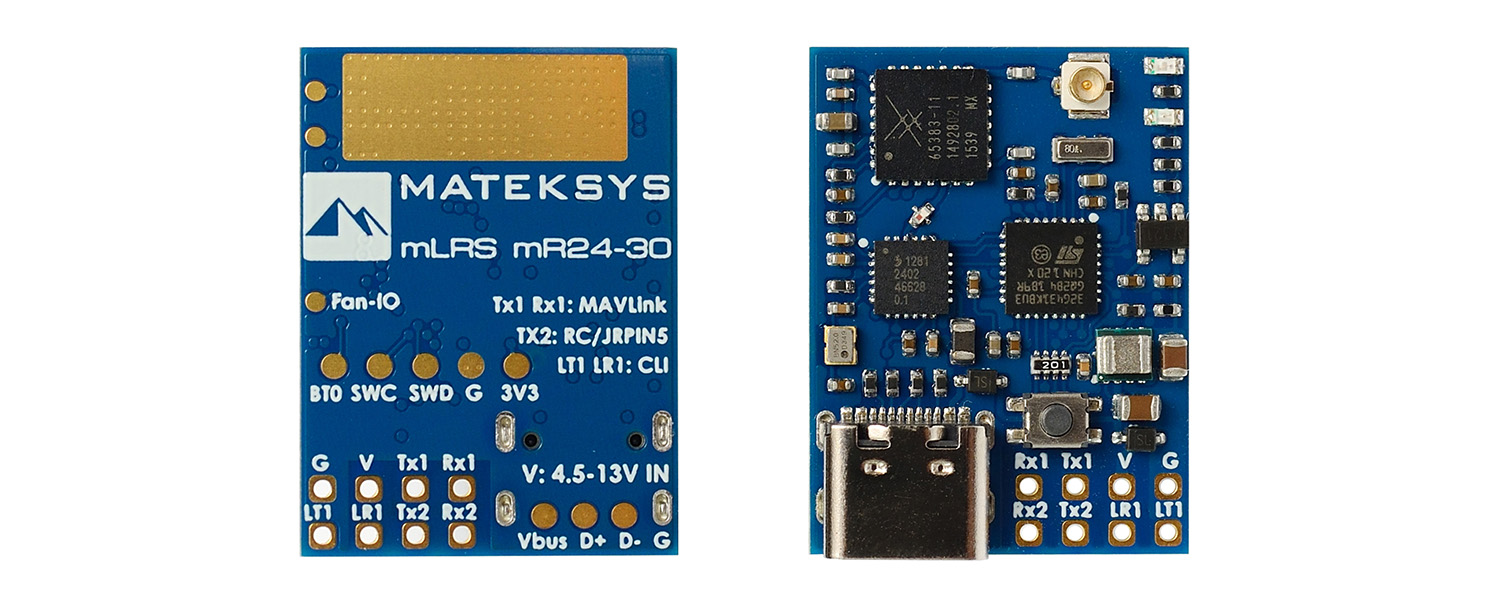

• PCB Size: 28x21mm
• Weight: 4.5g w/ antenna

• Packing:
  • 1x mR24-30
  • 1x IPEX MHF1 sleeve dipole antenna. 15cm

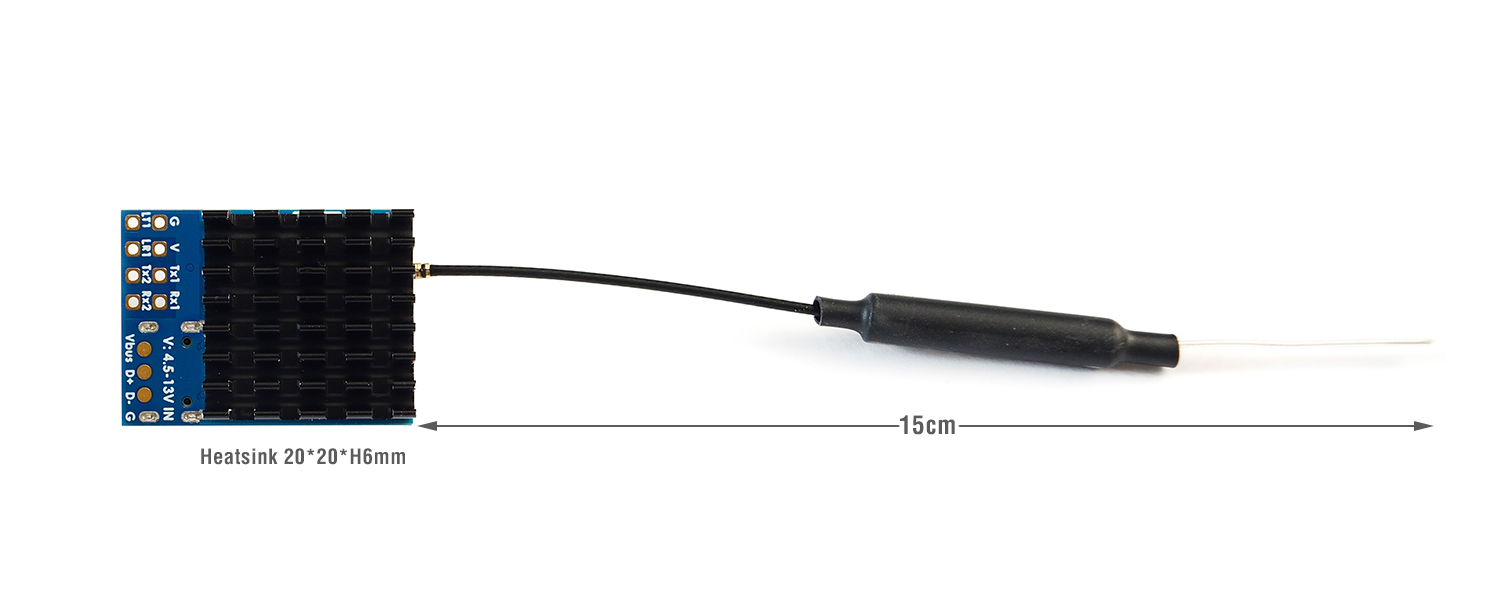

  • 1x Heatsink 20*20*6mm

LED Status

• [Red flashing 2Hz], not connected to transmitter
• [Green flashing 1Hz], connected to transmitter
• [Red and Green alternately ], Binding mode enabled

Binding

• After powering on,  press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
• https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md

Firmware

• mLRS https://github.com/olliw42/mLRS/tree/main/firmware/pre-release-stm32
• Targets:
  • RX Receiver: rx-matek-mr24-30-g431kb
  • TX module mode: tx-matek-mr24-30-g431kb-default
  • TX SiKtelem mode: tx-matek-mr24-30-g431kb-siktelem

Tips

• mLRS Github  & Documentation
• mLRS Discord
• mLRS Facebook group
• If set RF power >=500mW, It is recommended to attach the heatsink to the bottom side of PCB. The gaps between fins can be used for mounting with M3 screws
