Flight Controller H743-WLITE
STM32H743VIH6, ICM42688-P, DPS310, OSD, 7x UARTs, 1x CAN, 2x I2C, 12x PWM outputs, 3x BEC
NOTIFICATION
Recently we have noticed that there are fake H743-WLITE on market. If you are unsure if the H743-WLITE you purchased is genuine, you can send some high res photos of both sides of the flight controller board to service@mateksys.com. We will check out it for you.
Please purchase our products from authorized dealers https://www.mateksys.com/?page_id=1212

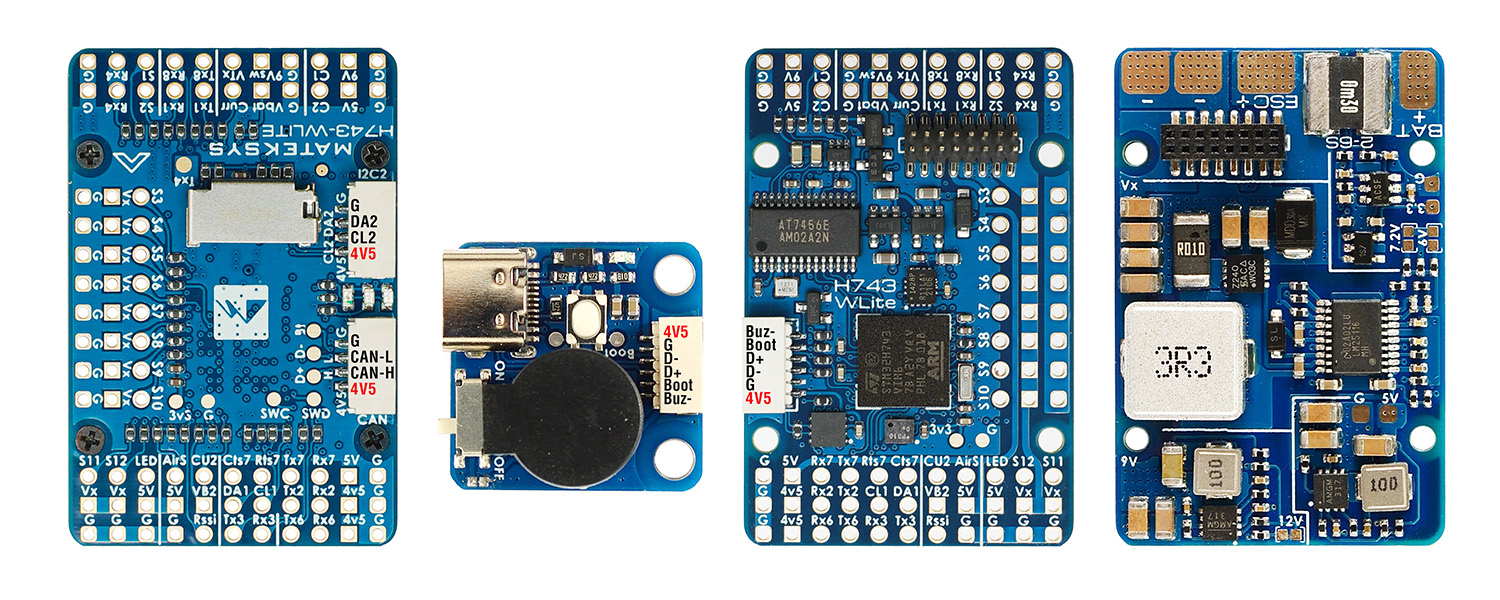

Gallery
Spec.& Manual
H743-WLITE Quick Start Guide
FC Specifications
- MCU: STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash
- IMU: ICM42688-P
- Baro: DPS310 (I2C2)
- OSD: AT7456E
- Blackbox: MicroSD card slot (SDIO)
- 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
- 13x PWM outputs(12+LED)
- 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 2x I2C
- 1x CAN
- USB/Beep Extender with Type-C(USB2.0)
- Dual Camera Inputs switch
- 9V(12V) for VTX power switch
- High-precision Current Sense, 220A range
- ADC VB2 voltage divider: 1K:20K
- ADC AirSpeed voltage divider: 20K:20K
FC Firmware
- INAV: MATEKH743
- ArduPilot: MATEKH743
PDB
- Input voltage range: 6.8~30V (2~6S LiPo)
- 1x ESC power pads
- Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
- Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
- Sense resistor: 90A continuous, 220A peak
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps, Max.3A
- 12V option with Jumper pad
- for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current: 8 Amps, Max.10A
- for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
- Designed for Baro / Compass module and external 3.3V peripherals
- Linear Regulator
- Continuous current: 200mA
Physical
- Mounting: 25 x 25mm, Φ2mm
- Dimensions: 44 x 29 x 14.5 mm
- Weight: 22g w/ USB/buzzer adapter
Including
- 1x H743-WLITE
- 1x USB(Type-C)/Beep (Passive buzzer) Extender
- 1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
- 2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
- 1x Rubycon ZLH 35V 470uF capacitor
- Dupont 2.54 pins (Board is shipped unsoldered)
Layout
Wiring
INAV mapping
| INAV | |||||
| PWM | S1 | PB0 | 5 V tolerant I/O | TIM3_CH3 | Fixed Wing Motor |
| S2 | PB1 | 3.3 V tolerant I/O | TIM3_CH4 | ||
| S3 | PA0 | 5 V tolerant I/O | TIM5_CH1 | Fixed Wing Servo |
|
| S4 | PA1 | 5 V tolerant I/O | TIM5_CH2 | ||
| S5 | PA2 | 5 V tolerant I/O | TIM5_CH3 | ||
| S6 | PA3 | 5 V tolerant I/O | TIM5_CH4 | ||
| S7 | PD12 | 5 V tolerant I/O | TIM4_CH1 | ||
| S8 | PD13 | 5 V tolerant I/O | TIM4_CH2 | ||
| S9 | PD14 | 5 V tolerant I/O | TIM4_CH3 | ||
| S10 | PD15 | 5 V tolerant I/O | TIM4_CH4 | ||
| S11 | PE5 | 5 V tolerant I/O | TIM15_CH1 | ||
| S12 | PE6 | 5 V tolerant I/O | TIM15_CH2 | ||
| LED | PA8 | 5 V tolerant I/O | TIM1_CH1 | 2812LED | |
| ADC | Vbat pad 1K:20K divider builtin |
PC0 | 0~36V | Vbat ADC ADC_CHANNEL_1 |
scale 2100 |
| Curr Pad | PC1 | 0~3.3V | Current ADC ADC_CHANNEL_2 |
scale 150 | |
| RSSI Pad | PC5 | 0~3.3V | RSSI ADC ADC_CHANNEL_3 |
Analog RSSI | |
| AirS Pad 20K:20K divider builtin |
PC4 | 0~6.6V | AirS ADC ADC_CHANNEL_4 |
Analog Airspeed | |
| VB2 Pad 1K:20K divider builtin |
PA4 | 0~69V | ADC_CHANNEL_5 | scale 2100 | |
| CU2 Pad | PA7 | 0~3.3V | ADC_CHANNEL_6 | spare | |
| I2C | I2C1 CL1/DA1 |
PB6/PB7 | 5 V tolerant I/O | Compass | QMC5883 / HMC5883 IST8310 / IST8308 MAG3110 / LIS3MDL |
| OLED | 0.96″ | ||||
| I2C2 CL2/DA2 on JST-GH-4P |
PB10/PB11 | 5 V tolerant I/O | onboard Barometer | DPS310, Add: 0x76 | |
| Digital Airspeed sensor | MS4525 | ||||
| Temperature sensor | |||||
| UART | USB | PA11/PA12 | 5 V tolerant I/O | USB | |
| TX1 RX1 | PA9/PA10 | 5 V tolerant I/O | USART1 | telem2 | |
| TX2 RX2 | PD5/PD6 | 5 V tolerant I/O | USART2 | GPS1 | |
| TX3 RX3 | PD8/PD9 | 5 V tolerant I/O | USART3 | GPS2 | |
| TX4 RX4 | PB9/PB8 | 5 V tolerant I/O | UART4 | USER | |
| TX6 RX6 | PC6/PC7 | 5 V tolerant I/O | TX6 & RX6 | CRSF | |
| UART6_RX | SBUS/IBUS/DSM/PPM | ||||
| UART6_TX | FPORT/SRXL2 | ||||
| RX7 TX7 | PE7/PE8 | 3.3 V tolerant I/O | UART7 | telem1 | |
| TX8 RX8 | PE1/PE0 | 5 V tolerant I/O | UART8 | USER | |
ArduPilot mapping
| ArduPilot | ||||||
| PWM | S1 | PB0 | 5 V tolerant I/O | PWM1 GPIO50 | TIM8_CH2N | Group1 |
| S2 | PB1 | 3.3 V tolerant I/O | PWM2 GPIO51 | TIM8_CH3N | ||
| S3 | PA0 | 5 V tolerant I/O | PWM3 GPIO52 | TIM5_CH1 | Group2 | |
| S4 | PA1 | 5 V tolerant I/O | PWM4 GPIO53 | TIM5_CH2 | ||
| S5 | PA2 | 5 V tolerant I/O | PWM5 GPIO54 | TIM5_CH3 | ||
| S6 | PA3 | 5 V tolerant I/O | PWM6 GPIO55 | TIM5_CH4 | ||
| S7 | PD12 | 5 V tolerant I/O | PWM7 GPIO56 | TIM4_CH1 | Gourp3 | |
| S8 | PD13 | 5 V tolerant I/O | PWM8 GPIO57 | TIM4_CH2 | ||
| S9 | PD14 | 5 V tolerant I/O | PWM9 GPIO58 | TIM4_CH3 | ||
| S10 | PD15 | 5 V tolerant I/O | PWM10 GPIO59 | TIM4_CH4 | ||
| S11 | PE5 | 5 V tolerant I/O | PWM11 GPIO60 | TIM15_CH1 | Group4 | |
| S12 | PE6 | 5 V tolerant I/O | PWM12 GPIO61 | TIM15_CH2 | ||
| LED | PA8 | 5 V tolerant I/O | PWM13 GPIO62 | TIM1_CH1 | Group5 | |
| SERVO13_FUNCTION 120, NTF_LED_TYPES neopixel | ||||||
| PWM1~PWM13 are Dshot and PWM capable. However, mixing Dshot and normal PWM operation for outputs is restricted into groups, ie. enabling Dshot for an output in a group requires that ALL outputs in that group be configured and used as Dshot, rather than PWM outputs. If servo and motor are mixed in same group, make sure this group run lowest PWM frequency according to the servo specification. ie. Servo supports Max. 50Hz, ESC must run at 50Hz in this group. |
||||||
| ADC | Vbat pad 1K:20K divider builtin |
PC0 | 0~36V | Vbat ADC onboard battery voltage sense |
BATT_VOLT_PIN BATT_VOLT_MULT |
10 21.0 |
| Curr pad | PC1 | 0~3.3V | Current ADC onboard current sense |
BATT_CURR_PIN BATT_AMP_PERVLT |
11 66.7 |
|
| VB2 Pad 1K:20K divider builtin |
PA4 | 0~69V | Vbat2 ADC | BATT2_VOLT_PIN BATT2_VOLT_MULT |
18 21.0 |
|
| CU2 Pad | PA7 | 0~3.3V | Current2 ADC | BATT2_CURR_PIN BATT2_AMP_PERVLT |
7 / |
|
| RSSI Pad | PC5 | 0~3.3V | RSSI ADC Analog RSSI |
RSSI_ANA_PIN RSSI_TYPE |
8 1 |
|
| AirS Pad 20K:20K divider builtin |
PC4 | 0~6.6V | AirS ADC Analog Airspeed |
ARSPD_PIN ARSPD_TYPE |
4 2 |
|
| I2C | I2C1 CL1/DA1 |
PB6/PB7 | 5 V tolerant I/O | Compass | COMPASS_AUTODEC | 1 |
| I2C2 CL2/DA2 on JST-GH-4P |
PB10/PB11 | 5 V tolerant I/O | on board Baro DPS310 | Address | 0x76 | |
| Digital Airspeed I2C MS4525 DLVR-L10D |
ARSPD_BUS ARSPD_TYPE ARSPD_TYPE |
0 1 9 |
||||
| CAN | CAN1 | PD0/PD1 | 5 V tolerant I/O | CAN Node | CAN_D1_PROTOCOL CAN_P1_DRIVER |
1 1 |
| CAN GPS CAN Compass CAN Airspeed sensor |
GPS_TYPE COMPASS_TYPEMASK ARSPD_TYPE |
9 0 8 |
||||
| UART | USB | PA11/PA12 | 5 V tolerant I/O | USB | console | SERIAL0 |
| RX7 TX7 RTS7 CTS7 | PE7/8/9/10 | 3.3 V tolerant I/O | UART7 | telem1 | SERIAL1 | |
| TX1 RX1 | PA9/PA10 | 5 V tolerant I/O | USART1 | telem2 | SERIAL2 | |
| TX2 RX2 | PD5/PD6 | 5 V tolerant I/O | USART2 | GPS1 | SERIAL3 | |
| TX3 RX3 | PD8/PD9 | 5 V tolerant I/O | USART3 | GPS2 | SERIAL4 | |
| TX8 RX8 | PE1/PE0 | 5 V tolerant I/O | UART8 | USER | SERIAL5 | |
| TX4 RX4 | PB9/PB8 | 5 V tolerant I/O | UART4 | USER | SERIAL6 | |
| TX6 RX6 | PC6/PC7 | 5 V tolerant I/O | USART6 | RC input/Receiver | SERIAL7 | |
| RX6 | SBUS/IBUS/DSM/PPM | |||||
| TX6 | FPORT/SRXL2 | |||||
RC INPUT
The Rx6 pin, which by default is mapped to a timer input, can be used for all ArduPilot supported receiver protocols, except CRSF which requires a true UART connection. However, bi-directional protocols which include telemetry, such as SRXL2 and FPort, when connected in this manner, will only provide RC without telemetry.
To allow CRSF and embedded telemetry available in Fport, CRSF, and SRXL2 receivers, the Rx6 pin can also be configured to be used as true UART RX pin for use with bi-directional systems by setting the BRD_ALT_CONFIG to “1” so it becomes the SERIAL7 port’s RX input pin.
With this option, SERIAL7_PROTOCOL must be set to “23”, and:
- PPM is not supported.
- SBUS/DSM/SRXL connects to the Rx6 pin, but SBUS requires that the SERIAL7_OPTIONS be set to “3”.
- FPort requires connection to Tx6 and SERIAL7_OPTIONS be set to “7”. If Telemetry doesn’t work, try set SERIAL7_OPTIONS = 135.
- CRSF also requires a Tx6 connection, in addition to Rx6, and automatically provides telemetry. Set SERIAL7_OPTIONS to “0”.
- SRXL2 requires a connection to Tx6 and automatically provides telemetry. Set SERIAL7_OPTIONS to “4”.
Any UART can be used for RC system connections in ArduPilot also, and is compatible with all protocols except PPM. See Radio Control Systems for details.
–
ArduPilot Relay(PINIO)
- Camera-1 and Vsw On by default
- Make sure 2 cameras are set with identical video format, both PAL or both NTSC.
# GPIOs
- PD10 PINIO1 OUTPUT GPIO(81) //9Vsw pad power switch
- PD11 PINIO2 OUTPUT GPIO(82) //Camera switch
# RCx_OPTION: RC input option
- 28 Relay On/Off
- 34 Relay2 On/Off
- 35 Relay3 On/Off
- 36 Relay4 On/Off
e.g.
- RELAY_PIN 81 //9Vsw GPIO
- RC7_OPTION 28 //Relay On/Off, Use CH7 of Transmitter to switch 9Vsw
- RELAY_PIN2 82 //Camera switch GPIO
- RC8_OPTION 34 //Relay2 On/Off, Use CH8 of Transmitter to switch camera
The configured feature will be triggered when the auxiliary switch’s pwm value becomes higher than 1800. It will be deactivated when the value falls below 1200.
Check the pwm value sent from the transmitter when the switch is high and low using the Mission Planner’s Initial Setup >> Mandatory Hardware >> Radio Calibration screen. If it does not climb higher than 1800 or lower than 1200, it is best to adjust the servo end points in the transmitter.
Notes & Tips
H743-WLITE vs F765-WSE
- STM32H743VIH6 vs STM32F765VIH6
- RX4/TX4 vs RX5
- Other components and layout are identical.
ArduPilot
- 220A Current sensor on H743-WLITE, , BATT_AMP_PERVLT to 66.7
- 1k:20k voltage divider for battery voltage sense on H743-WLITE, BATT_VOLT_MULT 21
- Supported since Arduplane 4.2
- It is recommended to use STM32CubeProgrammer to erase MCU and upload firmware. check this blog https://www.mateksys.com/?p=6905
INAV
- 220A Current sensor on H743-WLITE, set current_meter_scale = 150
- 1k:20k voltage divider for battery voltage sense on H743-WLITE, set vbat_scale = 2100
- Starting with INAV5.0, you may download firmware directly from INAV configurator.
Others
- If the ESCs you are using don’t have enough capacitors integrated, low ESR electrolytic capacitor is required for reducing ESC noise.
