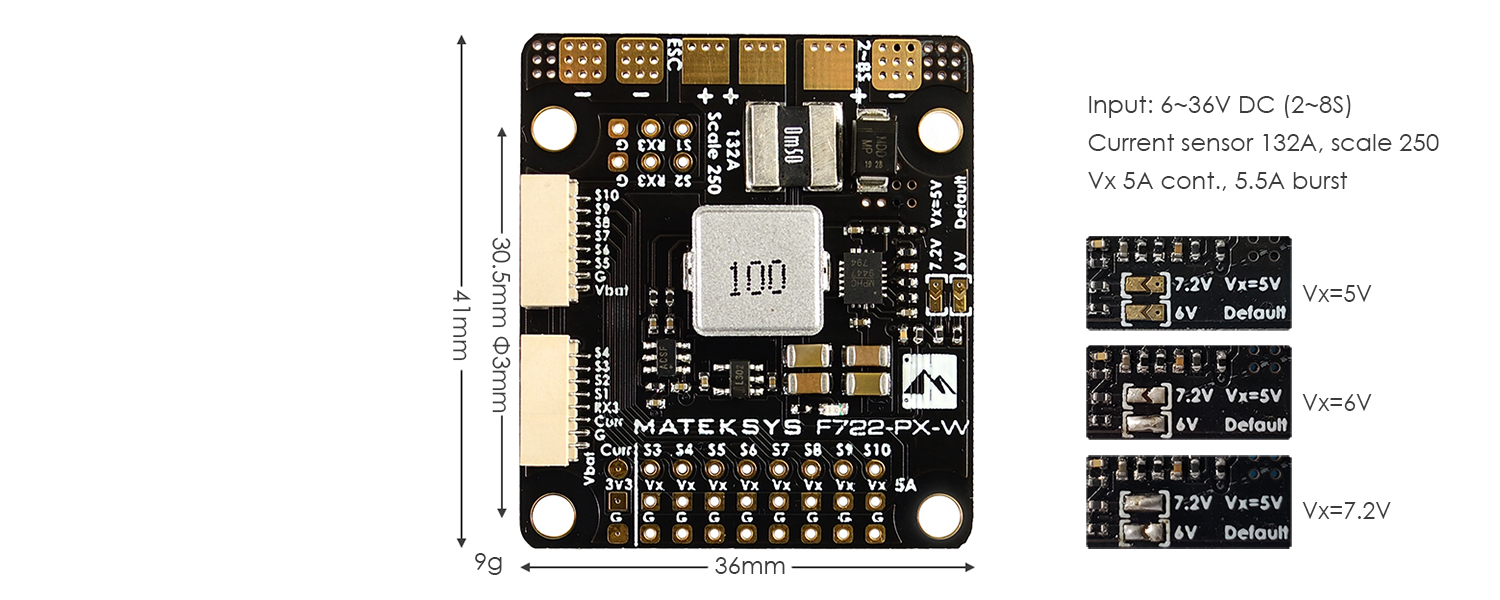

PDB

• Input voltage range: 6~36V (2~8S LiPo) w/TVS protection
• 2x ESC power pads
• High precision current Senor: 132A,  3.3V ADC,  Scale 250
• BEC 5A,  5V/6V/7.2V Adj

Soldering Holes & Pads

• + & – : Bettery & ESC power pads
• Curr: Current sensor output
• Vbat: Bettery voltage
• G: Ground
• 3V3: LDO 3.3V 500mA
• Vx: BEC 5V/6V/7.2V ADJ

SH1.0-8P connection

• RX3 and S1~S10 are compatible with MATEKSYS Flight controller F722-PX

BEC Vx output

• Designed for Servos
• DC/DC synchronous buck regulator
• Voltage adjustable, 5V Default, 6V or 7.2V via jumper
• Continuous current: 5 Amps, Max.5.5A
• Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
• Short-circuit tolerant (2 seconds)

Physical

• Mounting: 30.5 x 30.5mm, Φ3mm
• Dimensions: 41 x 36 mm
• Weight: 9g
