Analog Airspeed Sensor ASPD-7002

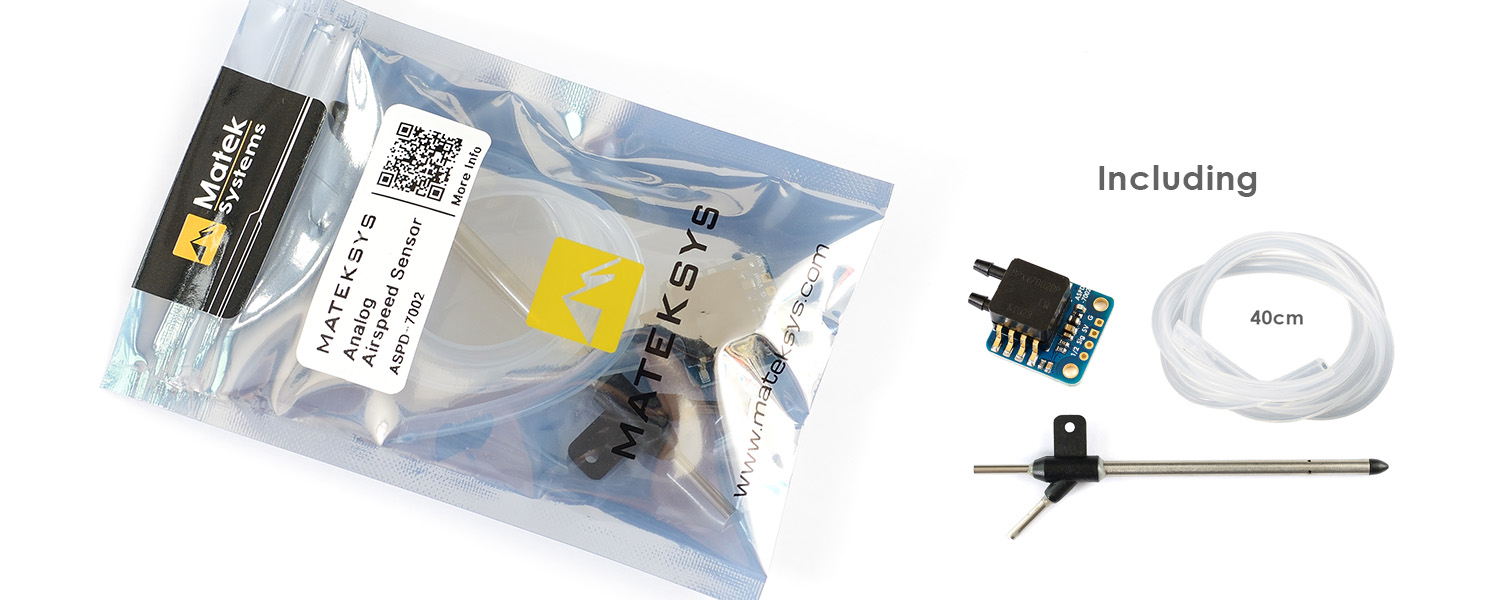

Photos

Spec. & Wiring

Specifications

Input Voltage: 4.8~5.2V DC
Working current: 20mA
Sig pad: 0.5~4.5V output
1/2 pad has voltage divider built-in, 0.25~2.25V output.
Pressure range: -2 to 2 kPa (-0.3 to 0.3 psi)
Speed range: -200 to 200 km/h

FC	FC ADC Pad	ASPD-7002	INAV	Ardupilot
F405-WING	RSSI	1/2 pad	CLI set rssi_adc_channel = 0 set airspeed_adc_channel = 3 set pitot_hardware = ADC save	ARSPD_TYPE 2 ARSPD_PIN 15
F405-CTR F405-STD	RSSI	1/2 pad	CLI set rssi_adc_channel = 0 set airspeed_adc_channel = 3 set pitot_hardware = ADC save	ARSPD_TYPE 2 ARSPD_PIN 9
F722-STD	RSSI	1/2 pad	CLI set rssi_adc_channel = 0 set airspeed_adc_channel = 3 set pitot_hardware = ADC save	/
F722-SE	PA4 (Rear of board)	1/2 pad	set pitot_hardware = ADC	/
F722-WING	AirS	Sig pad	set pitot_hardware = ADC	/
F411-WSE	AirS	Sig pad	set pitot_hardware = ADC	/
F765-WING	AirS	Sig pad	set pitot_hardware = ADC	ARSPD_TYPE 2 ARSPD_PIN 10
F411-WING***	ST1pad	1/2 pad	CLI set rssi_adc_channel = 0 set airspeed_adc_channel = 3 set pitot_hardware = ADC save	/

*** use Target variant MATEKF411_RSSI for F411-WING, Analog RSSI input is on ST1 pad. softserial_tx1 will be available on the LED pad.
